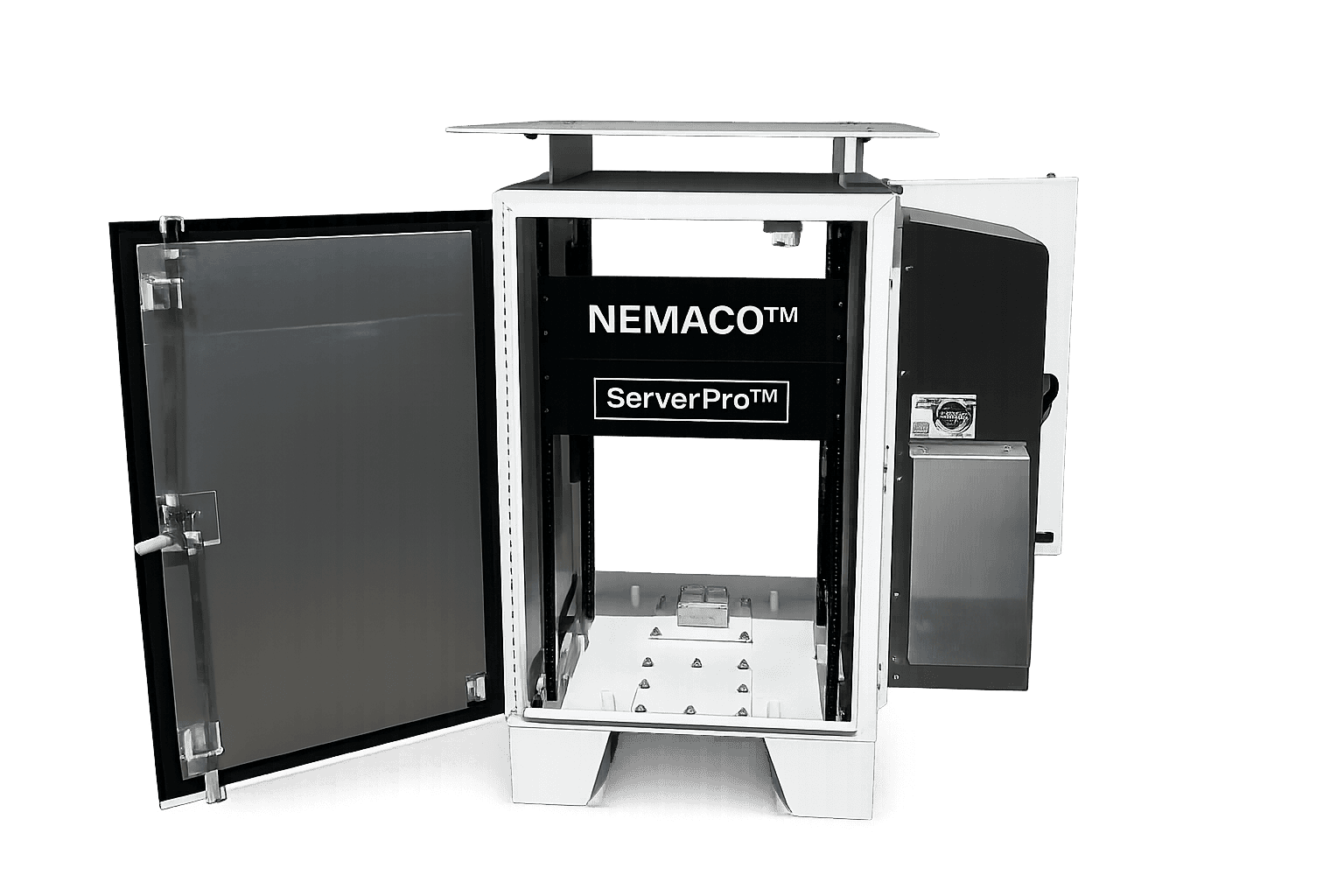

ServerPro™ Telecom & Network Cabinets

ServerPro™ Telecom / Network Cabinet Features & Options:

• 19-inch EIA Rack Rails to support standard rackmount equipment

• Rack Rails Tapped for #10-32, 1/4-24 or 3/8 square hole for cage nuts

• Rack Units: 12u, 15u, 20u, 22u, 25u, 27u, 29u, 30u, 36u, 42u & other sizes

• Rack Cabinet Height: 24", 30", 36", 42", 48", 54", 60", 72", 78", 84"

• Rack Cabinet Depth: 12", 16", 20", 24", 30", 36", 42"

• Rack Cabinet Width: 24" (standard), 30", 36", 48" (for double wide)

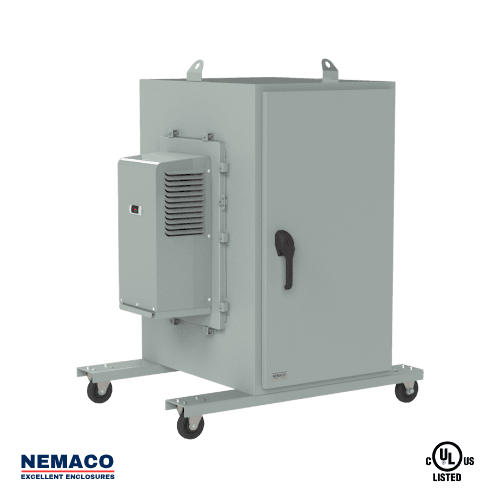

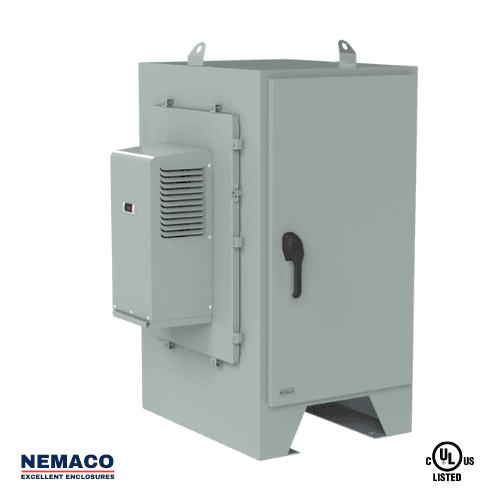

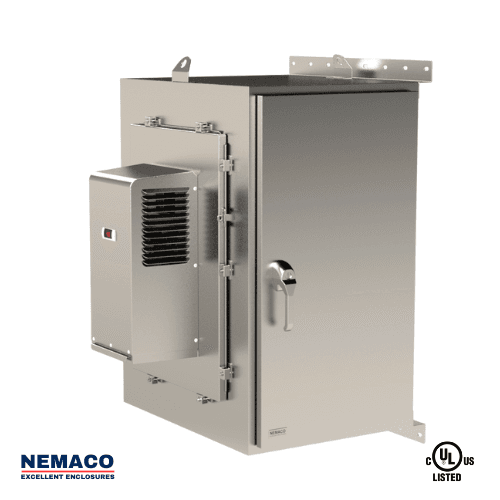

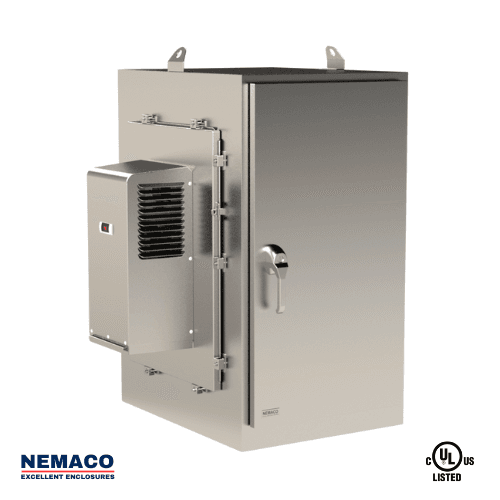

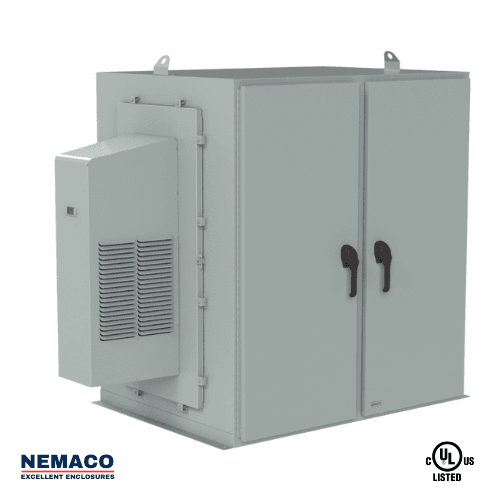

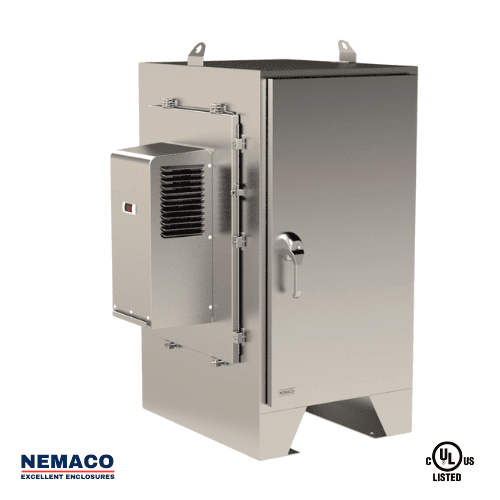

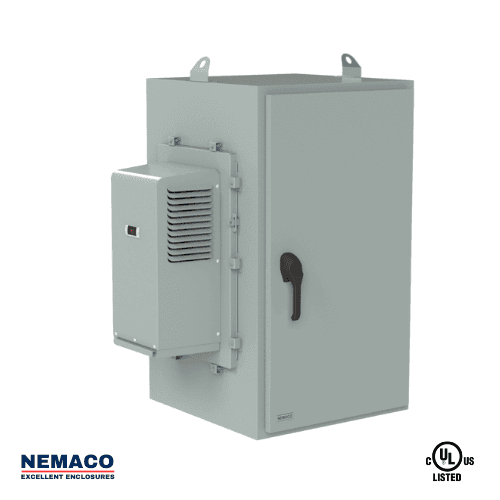

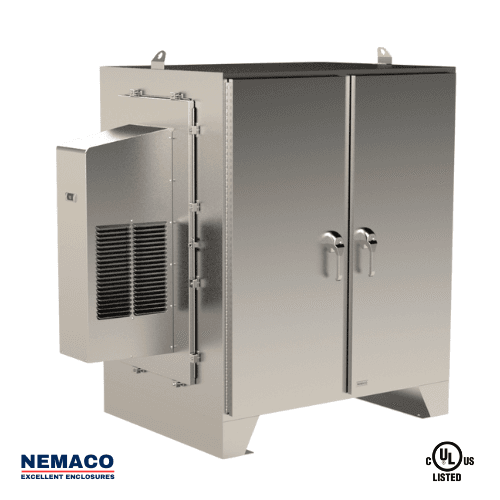

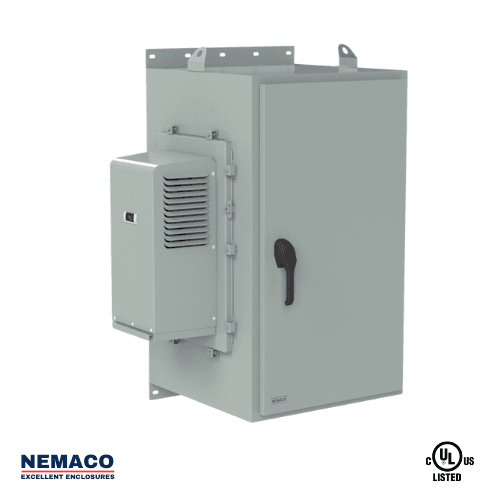

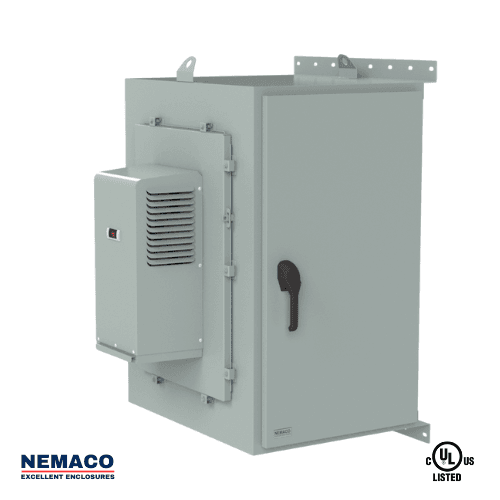

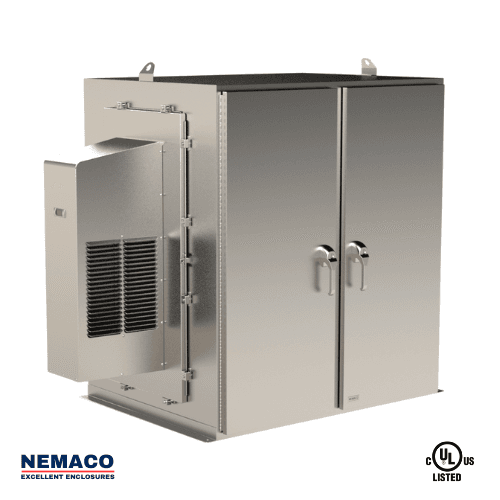

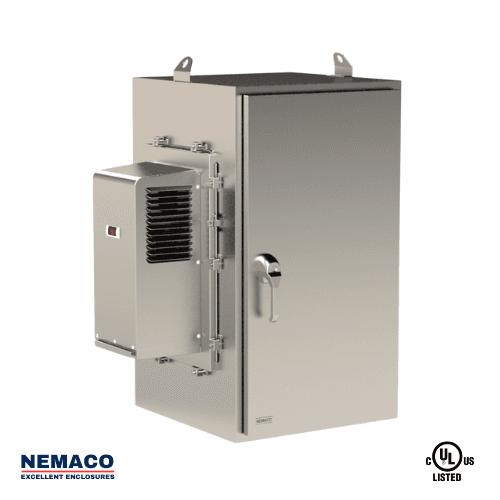

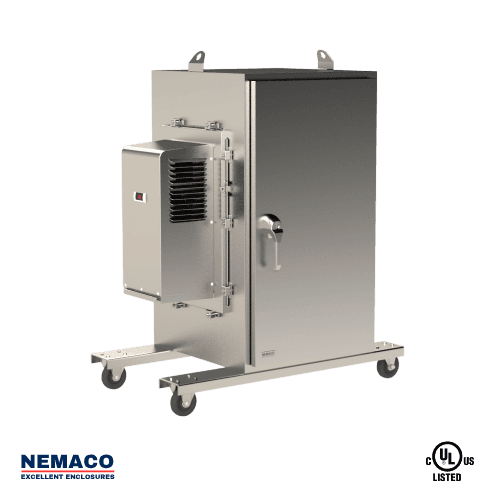

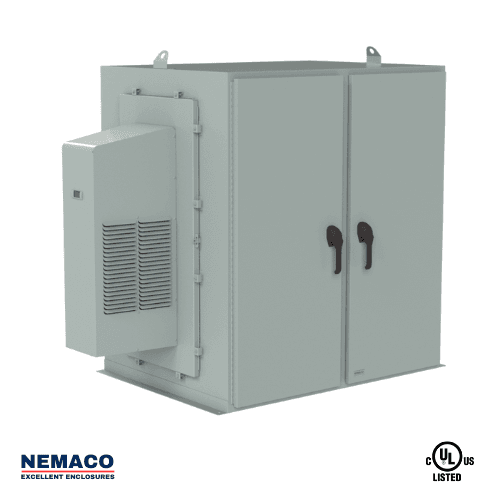

• Configurations: wall mount, floor mount, free standing, mobile / portable

• Enclosure Body Materials: mild steel, stainless steel, aluminum

• Powder Coat Colors: white, light gray, medium gray, black, custom colors

• Rain Resistant Ratings: NEMA 3 (dust-proof), NEMA 3R (rain only)

• Washdown Protection Rating: NEMA 4, NEMA 4X (corrosion protection)

• Dust Resistant Rating: NEMA 12 (dust-proof seals)

• Environments: indoor & outdoor (all weather)

• Applications: switchgear, networks, telecom systems, SCADA

Certifications & Industry Standards

• UL 50 and UL 50E; File Number E507642

• cUL listed per CSA C22.2 No. 94; File Number E507642

• CSA C22.2 No. 94.1-15 and 94.2-15

• NEMA/EEMAC: Types 4, 4X, and 12

• IEC 60529 Type IP66

Weatherproof Data Infrastructure Protection

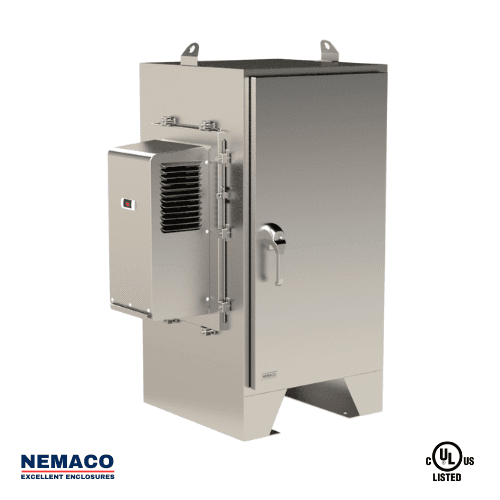

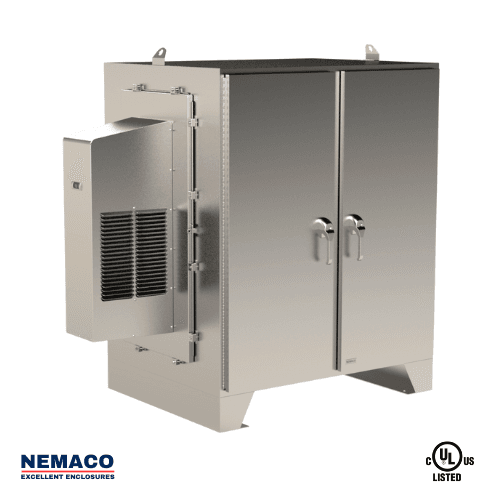

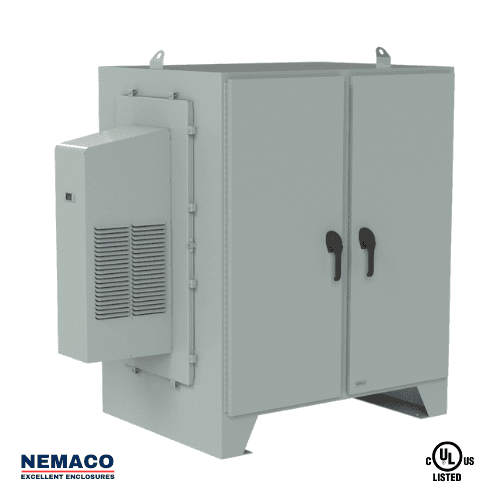

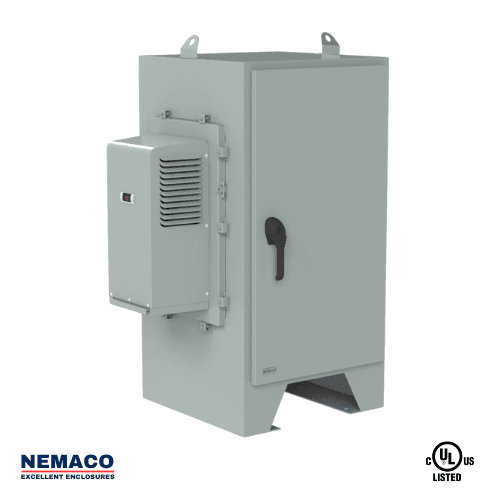

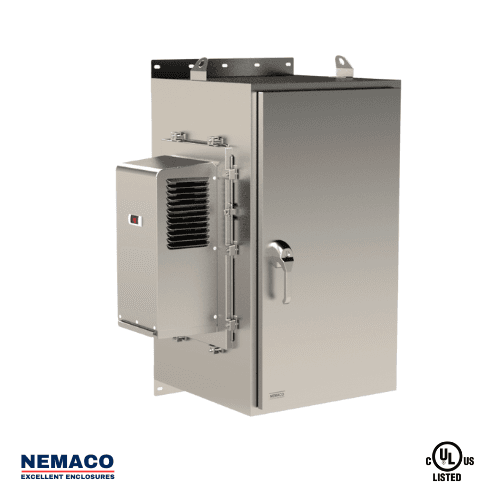

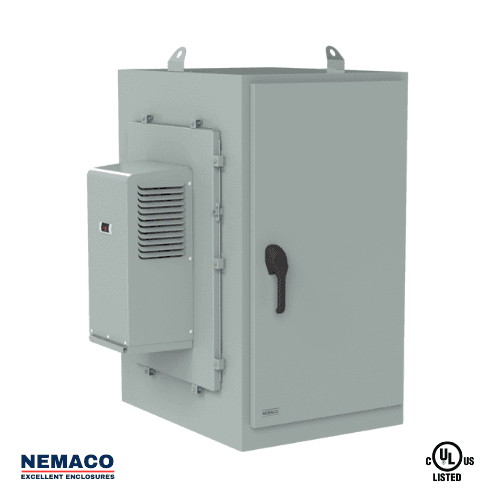

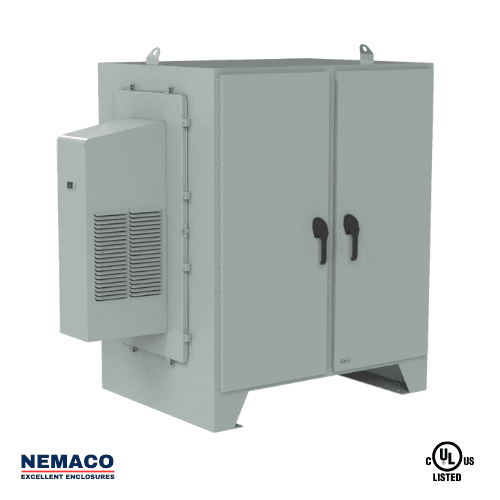

ServerPro™ server cabinets protect critical data equipment, radar systems, and telecom facilities from extreme weather conditions. The enclosures shield internal electronics against dust, dirt, radiant solar heat, torrential rain storms, frigid cold weather, snow, and ice. To ensure optimal performance, NEMACO™ offers multiple NEMA and IP-rated designs that support both indoor industrial environment & outdoor weatherproof protection and in conjunction with protective water gasket seal, metal drip shields, tight compression door seals with rugged locking handles for security.

Advanced Thermal Management & Cooling Options

To prevent equipment overheating and maintain safe operating temperatures, NEMACO™ provides integrated cooling solutions including the following:

• Bolt-on HVAC air conditioners for active digital climate control.

• Washdown-resistant filter fans to block dust and water spray.

• Reflective sunshields to reduce radiant solar heat load

• Interior barrier insulation to reduce conductive heat transfer.

• A/C Hatch Doors to for easy repair and system maintenance.

Free Thermal Calculations for Air Conditioner Cooling

To calculate the required cooling requirement, first total internal + external heat must be calculated. Send the data to NEMACO™ .

• Enclosure size Height x Width x Depth.

• Outside Max Temperature for warm weather (Celsius or Fahrenheit)

• Enclosure Interior Temperature for warm weather (Celsius or Fahrenheit)

• Enclosure Color White, Gray, Black, Stainless (no coating) for example

• Interior barrier insulation (R value based on thickness) or none

Call NEMACO™ for server rack solutions.
