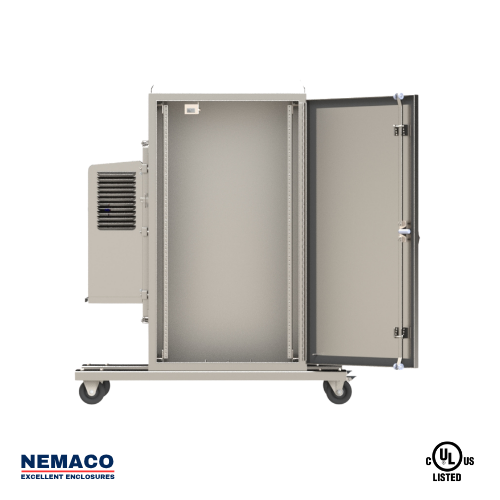

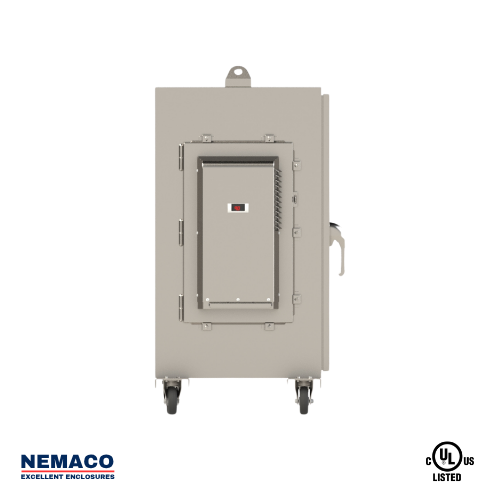

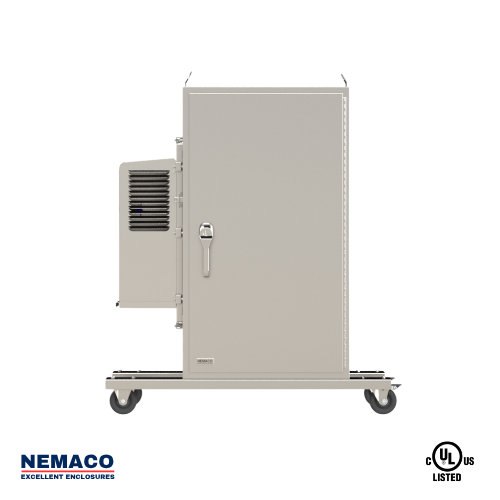

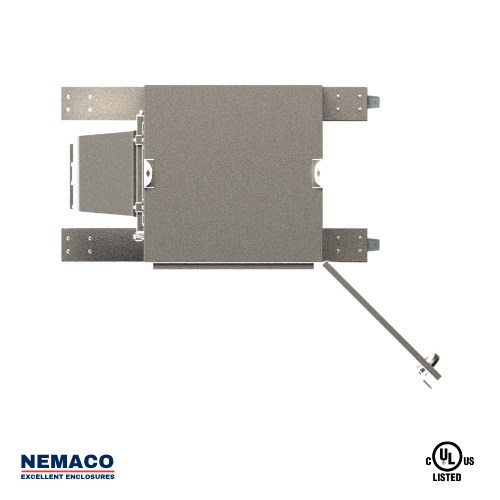

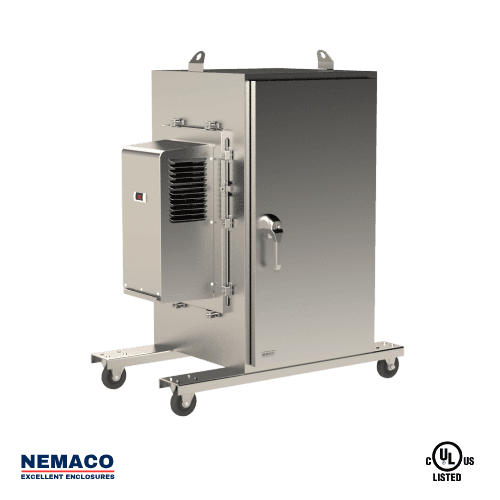

Single Bay Mobile, 1 Front Door
Mobile 19" EIA server rack cabinet in 304 or 316L stainless steel for corrosive environments that require repositionable weatherproof rack protection without structural modification.
UL Listed | NEMA 4X, 12 rated for corrosion resistance, direct spray, rain, snow, and dust protection
Single front access door for rack equipment, SCADA systems, and process control networks in chemically aggressive or high-moisture environments
2-post 19" EIA fully adjustable rack rails with UPS/PDU space
304 stainless steel standard; 316L available for coastal, chemical processing, and high-chloride environments
1/2" thick radiant barrier insulation (R3.2) for thermal protection in outdoor installations
Front swivel caster wheels with locking brake and rear straight casters for stable stationary operation
UL 50 and UL 50E; File Number E507642
NEMA/EEMAC: Types 4, 4X, and 12
IEC 60529 Type IP66
cUL listed per CSA C22.2 No. 94; File Number E507642
Can't find what you need?
Submit a Custom Request
19in EIA Stainless Steel Rack Rails
19inch EIA Horizontal Busbar
Air-condition Hatch Door
Air-conditioned unit
Barrier Insulation
Contact Door Switch
Server Rack Cabinet
ServerPro™ 4
Single Bay Wall Mount
1 Front Door
Material: Galvanized Steel or Aluminum
Standard Finish: Powder Coat ANSI 61 Gray
Dimensions [in.]: H:24–72, W:24, D:16–30

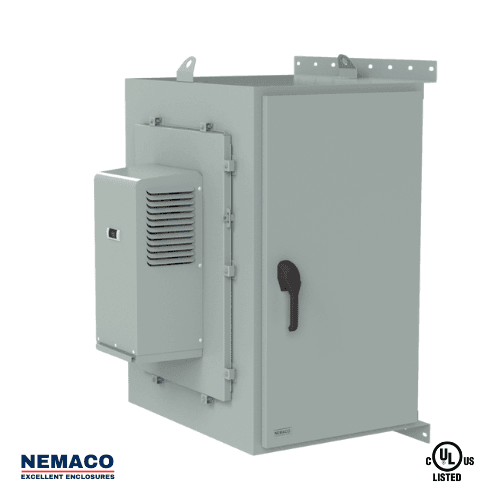

Server Rack Cabinet
ServerPro™ 4
Single Bay Mobile
2 Doors (Front & Rear)
Material: Galvanized Steel or Aluminum
Standard Finish: Powder Coat ANSI 61 Gray
Dimensions [in.]: H:24–72, W:24, D:24–42
