Specify & Design Your Enclosure SolutionConfiguration
Configuration

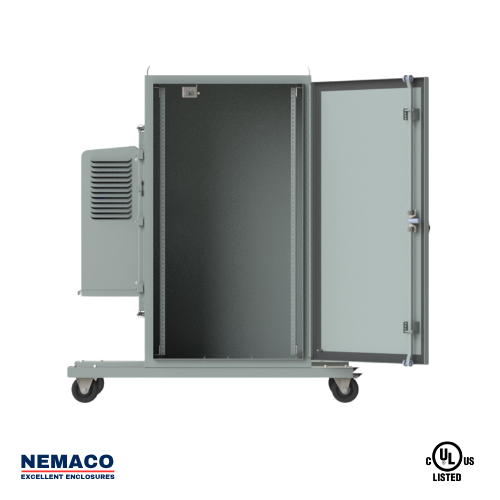

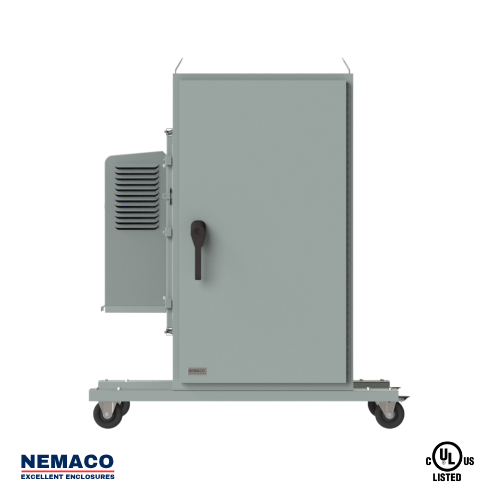

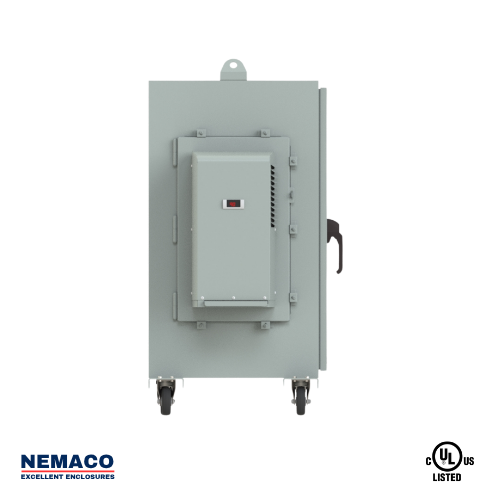

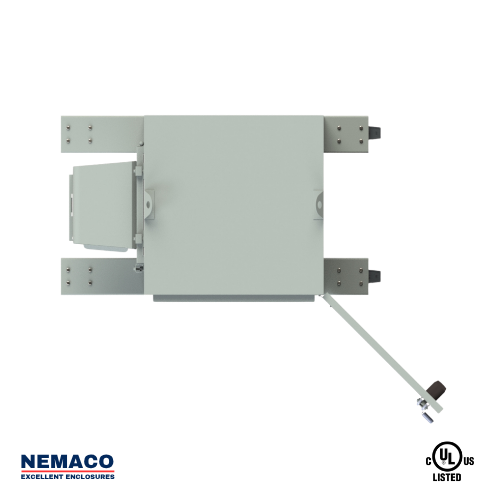

Single Bay Mobile, 1 Front Door
Mobile 19" EIA server rack cabinet for installations requiring weatherproof rack protection with the flexibility to reposition equipment across concrete slabs and raised floors without tools or structural modification.
UL Listed | NEMA 4, 12 rated for direct spray, rain, snow, and dust protection
Single front access door for rack equipment, SCADA systems, and process control networks
2-post 19" EIA fully adjustable rack rails with UPS/PDU space
Powder-coated steel construction with continuous welded seams and foam-in-place gasket sealing
1/2" thick radiant barrier insulation (R3.2) for thermal protection in outdoor installations
Front swivel caster wheels with locking brake and rear straight casters for stable stationary operation
CSA C22.2 No. 94.1-15 and 94.2-15
NEMA/EEMAC: Types 4, 4X, and 12
IEC 60529 Type IP66
UL 50 and UL 50E; File Number E496085
Can't find what you need?
Submit a Custom Request
19in EIA Stainless Steel Rack Rails
19inch EIA Horizontal Busbar
Air-condition Hatch Door
Air-conditioned unit
Barrier Insulation
Contact Door Switch
Server Rack Cabinet
ServerPro™ 4
Single Bay Wall Mount
1 Front Door
Material: Galvanized Steel or Aluminum
Standard Finish: Powder Coat ANSI 61 Gray
Dimensions [in.]: H:24–72, W:24, D:16–30
Server Rack Cabinet
ServerPro™ 4
Single Bay Mobile
2 Doors (Front & Rear)
Material: Galvanized Steel or Aluminum
Standard Finish: Powder Coat ANSI 61 Gray
Dimensions [in.]: H:24–72, W:24, D:24–42
