ServerPro™ 4

Floor Mount
Description
plusminus

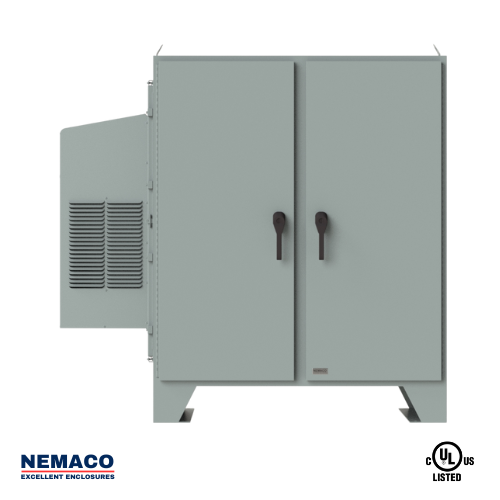

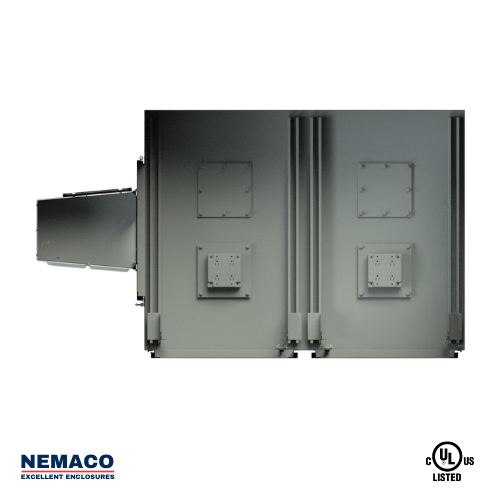

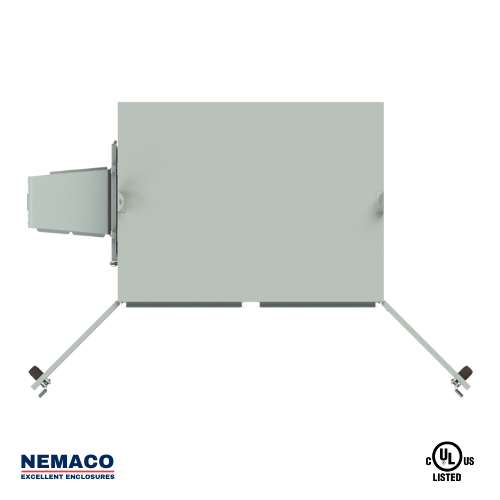

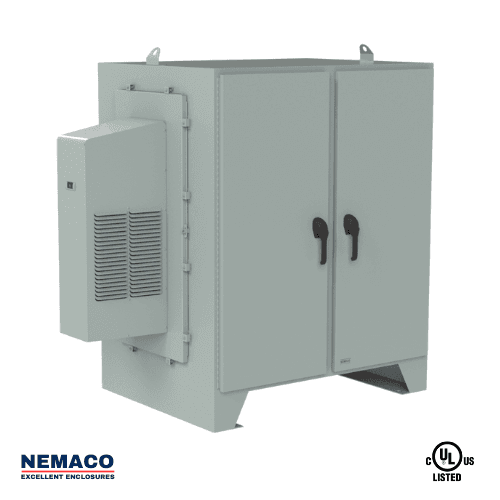

Dual-bay floor mount 19" EIA server rack cabinet for expanded capacity installations

  • UL Listed | NEMA 4, 12 rated for direct spray, rain, snow, and dust protection

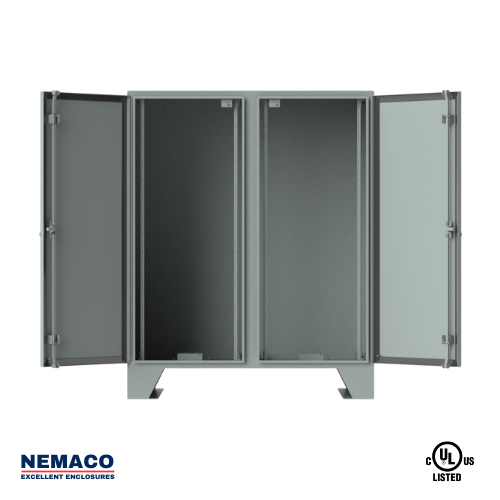

  • Two front access bays enable flexible equipment segregation and phased deployments
  • 4-post 19" EIA adjustable rack rails in each bay for redundant systems and expanded infrastructure
  • Powder coated Aluminum or powder coated Steel constructions
  • 1/2” thick foam-in-place radiant barrier insulation for improving temperature stability

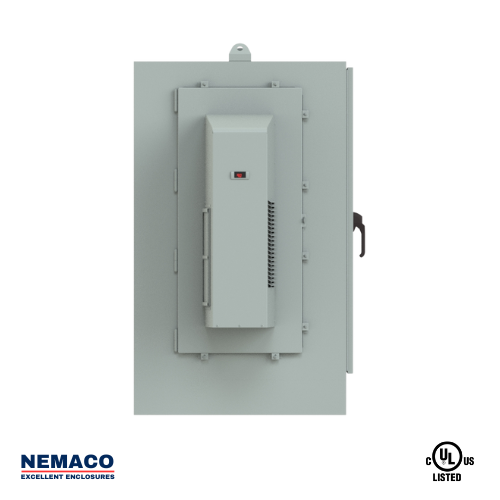

  • Outdoor-rated A/C units for closed-loop cooling or filtered fans for active ventilation
Specifications
plusminus
Ratings: NEMA 4/12 • IP 66
Material: Galvanized Steel or Aluminum
Configuration: Floor Mount
Material Thickness: 14 - 12 gauge
Available Dimensions [in.]: H:24–72, W:48, D:24–48
Standard Finish: Powder Coat ANSI 61 Gray
Certifications & Industry Standards
plusminus
  • UL 50 and UL 50E; File Number E507642
  • cUL listed per CSA C22.2 No. 94; File Number E507642
  • CSA C22.2 No. 94.1-15 and 94.2-15
  • IEC 60529 Type IP66
  • NEMA/EEMAC: Types 4, 4X, and 12
  • UL 50 and UL 50E; File Number E507642
  • cUL listed per CSA C22.2 No. 94; File Number E507642
  • CSA C22.2 No. 94.1-15 and 94.2-15
  • IEC 60529 Type IP66
  • NEMA/EEMAC: Types 4, 4X, and 12
H
H
No items found.
W
W
No items found.
D
D
No items found.
Request a Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Download Drawings

Quick Actions

Product Literature
Certifications
Thermal Calculator

Spec Drawings Download

Height [in]
Height [in]
No items found.
Width [in]
Width [in]
No items found.
Depth [in]
Depth [in]
No items found.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Can’t find what you need?

Submit a Custom Request
Rack (U-Size)
Height (in)
Width (in)
Depth (in)
Actions
No items found.

NEMA 4/4X Double Bay Server Rack Options

Wall mount
Floor mount
Free Standing
Mobile
Barrier Insulation
Filtered Fans
Gasketed Cover Gland Plate
Key Lockable Handle
Removable Lifting Pad
Print pocket
Quad Outlet Box
19in EIA Stainless Steel Rack Rails
Sunshield Cover
Floor Mounting Kit
19inch EIA Horizontal Busbar
Air-condition Hatch Door
Air-conditioned unit
NEMA 4-4X Clamps and Lockable Hasp
Window Glass Door (non-UL option)
Contact Door Switch
Door Stopper
ServerPro™
Server Rack Enclosure
Floor Mount
IP66
NEMA 4

Technical Drawing Available

Download Spec Drawing for “Dimensions: 42" × 24" × 36"”  to review additional options before requesting your quote.
