Wall Mount Enclosures & Server Rack Cabinets

How to Quickly Specify "Wall Mount" Pre-Engineered Electrical Enclosures & Network Server Rack Cabinets

1. Use the Filter System: Select "Wall Mount" Configuration

• Choose " Wall Mount" unless there's a better configuration option.

• You can toggle between options: wall mount, floor mount, mobile, etc.

2. Select Enclosure "Type" for the Application

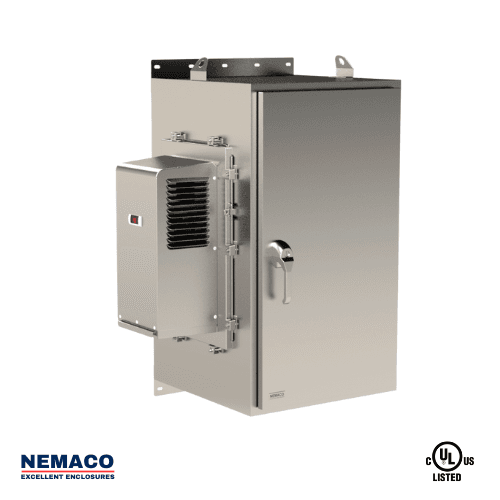

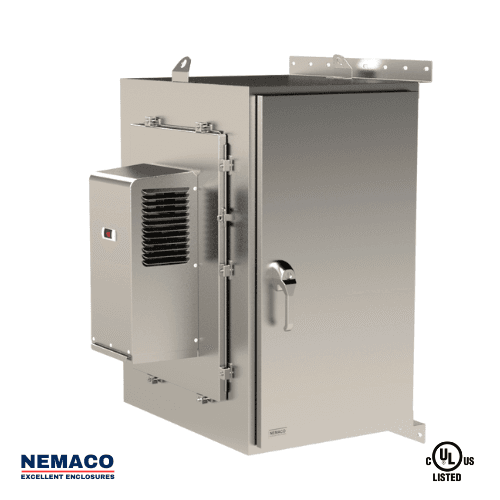

• Server Rack Cabinet: 19 inch rack for IT networks or switch gear

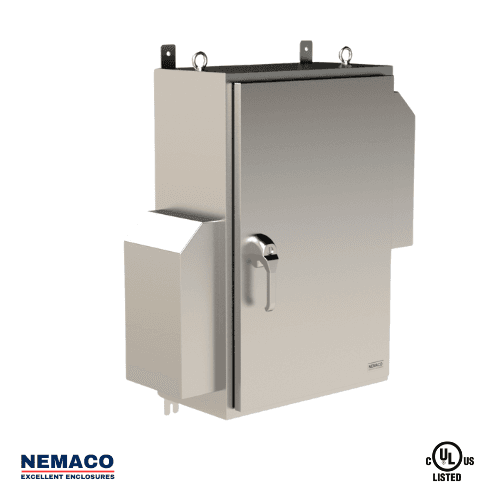

• Electrical Enclosure: used for Electrical Power, PLC, VFD's , wiring

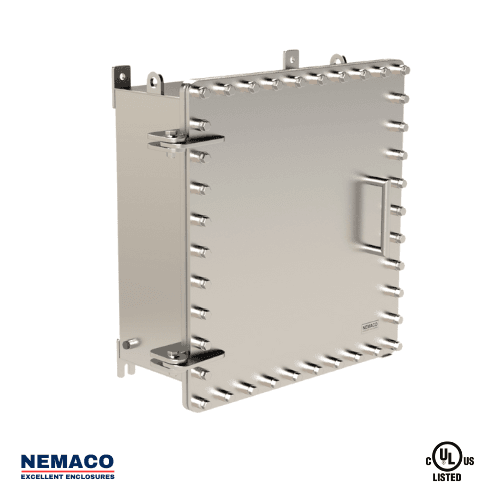

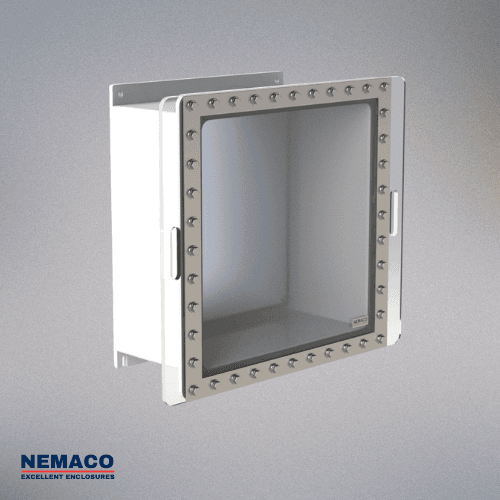

• Submersible Enclosure: used for sealed tight waterproof applications

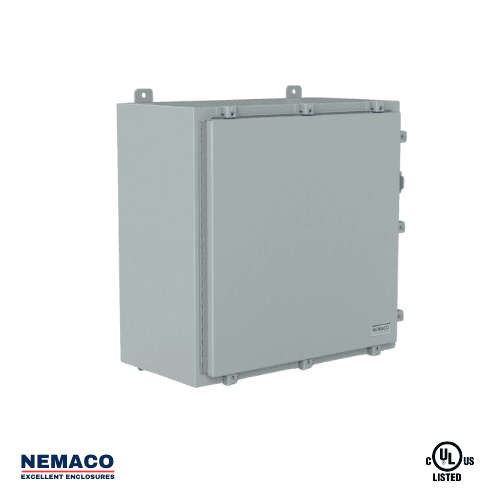

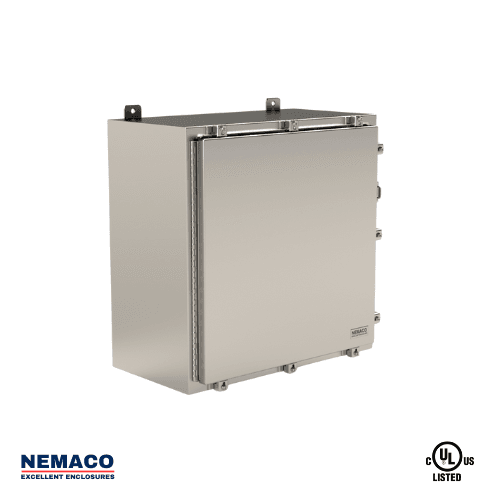

• Junction & Pull Box: used primarily for splicing wiring & power cables

• Wireway & Trough: used for splicing & protecting long power & IT cables

3. Specify Enclosure "Material"

• Powder Coat Steel: Good for most indoor or outdoor applications

• Powder Coat Aluminum: Light weight, mild corrosion protection

• Stainless Steel (304, 316): Strong & Corrosion Resistance (passivated)

4. Specify NEMA or IP Protection "Ratings" for Application

• Rain Resistant Ratings: NEMA 3 (dust-proof), NEMA 3R (rain only)

• Rain Resistant Rating with corrosion protection NEMA 3X, NEMA 3RX

• Washdown Protection Rating: NEMA 4, NEMA 4X (corrosion protection)

• Submersible Waterproof : iP67 (temporary) or IP68, NEMA 6P (prolonged)

• Dust Resistant Rating: NEMA 12 (dust-proof seals, water drip-proof)

5. Selection Product "Series" as an Option.

• If applicable select a products that fits your design application

• 5. Selection Product "Series" as an Option.

6. Go Find the Enclosure Size HxWxD and options that you want.

Don't Forget to "Download" Your Pre-Engineered Drawing that will save you a lot of design time.

• Make sure to confirm the HxWxD dimensions

• Review all the options on the drawing check list

• In particular, review the Wall Mount - for pole brackets or wall mount tabs

• Determine if you need Flat Wall Tabs or Offset Brackets away from the wall

Wall-mount designed (with mounting tabs) are ideal for enclosures and server rack cabinets that are located in tight spaces in an office or warehouse. Often wall mount enclosures can be easily be bolted to sturdy wall or bolted by using a pole mount u-shaped bolts to a pole or metal beam. Specify the height, width and depth for your enclosure application.

Specify pre-engineered wall-mount electrical enclosures and compact network cabinets. Engineered with flat wall tabs or offset pole brackets to securely bolt critical electronics to walls, structural beams, or outdoor poles in tight space configurations. Also, pole mount bracket adapters are available for round or square pole profiles.

Call NEMACO™ if you have any questions about applications.
