WireGuard™ 4

Wall Mount
Description
plusminus

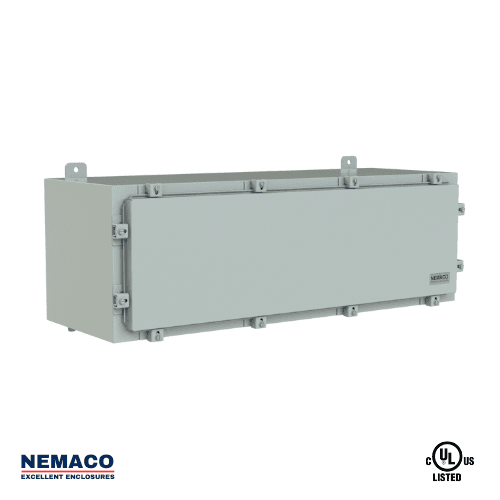

Wall mount NEMA 4 wireway and trough for protected cable routing in indoor and outdoor environments

  • UL Listed | NEMA 4, 12 | IP66 rated for rain, snow, dust, and washdown protection
  • Rugged steel or aluminum construction with a rain-tight, gasketed door and integrated mounting provisions
  • Standard NEMA 4X clamps and padlock hasp provision for enhanced security
  • Optional patch panel available for clean routing of conduit pipes or cable bundles through the cabinet
Specifications
plusminus
Ratings: NEMA 4/12 • IP 66
Material: Galvanized Steel or Aluminum
Configuration: Wall Mount
Material Thickness: 14 - 12 gauge
Available Dimensions [in.]: H:–, W:, D:–
Standard Finish: Powder Coat ANSI 61 Gray
Certifications & Industry Standards
plusminus
  • UL 50 and UL 50E; File Number E507642
  • cUL listed per CSA C22.2 No. 94; File Number E507642
  • CSA C22.2 No. 94.1-15 and 94.2-15
  • NEMA/EEMAC: Types 4, 4X, and 12
  • IEC 60529 Type IP66
  • UL 50 and UL 50E; File Number E507642
  • cUL listed per CSA C22.2 No. 94; File Number E507642
  • CSA C22.2 No. 94.1-15 and 94.2-15
  • NEMA/EEMAC: Types 4, 4X, and 12
  • IEC 60529 Type IP66
