Floor Mount

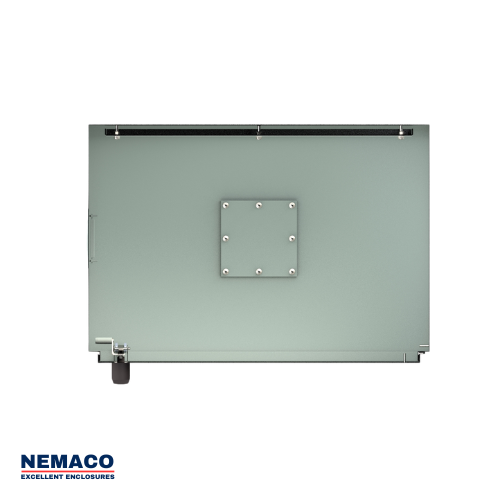

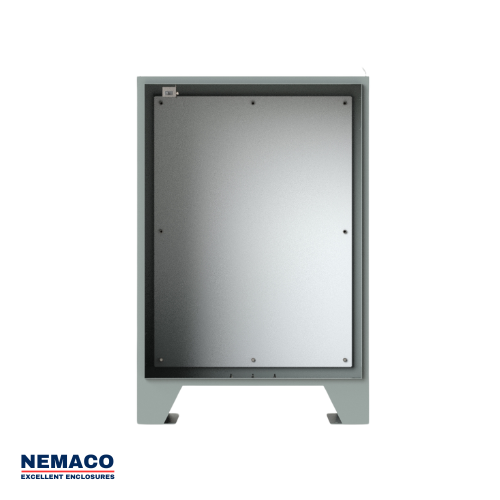

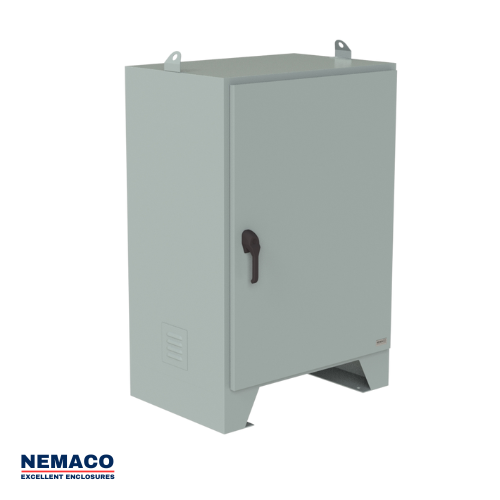

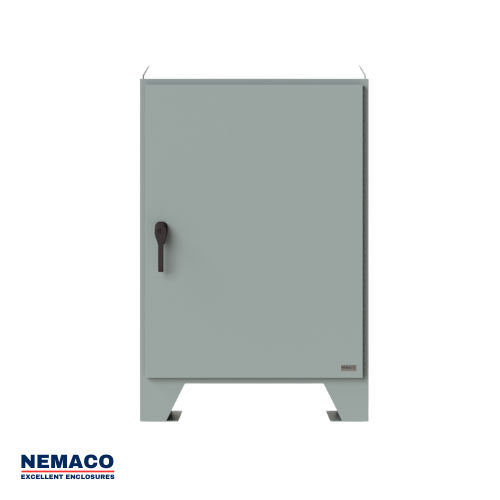

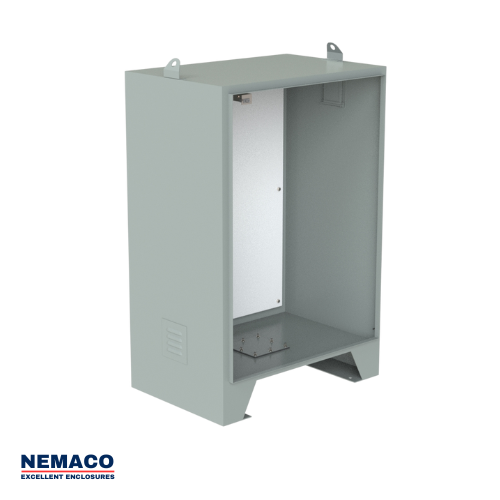

Floor mount electrical NEMA 3R control cabinet for outdoor protection
NEMA/EEMAC: Types 3R, 3RX
IEC 60529 Type IP54
| URack (U-Size) | HHeight (in) | WWidth | DDepth | Actions |
|---|---|---|---|---|
No spec drawings available for this product line. Drawings for this configuration have not been published yet. Need a specific drawing? Contact Sales | ||||
Air-condition Hatch Door
Air-conditioned Unit
Barrier Insulation
Contact Door Switch
Door Stopper
Floor Mounting Kit
Gasketed Cover Gland Plate
Key Lockable Handle
NEMA 4-4X Clamps and Lockable Hasp
Print Pocket
Quad Outlet Box
Removable Lifting Pad
Sunshield Cover
Window Glass Door (non-UL option)

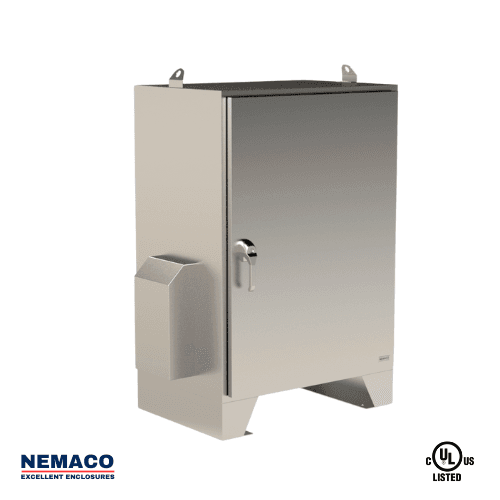

Electrical Enclosure
NEMAPro™ 4X
Double Bay Free Standing
2 Front Doors
Material: Stainless Steel
Standard Finish: #4 Grain Finish
Dimensions [in.]: H:24–72, W:48–72, D:12–30
Electrical Enclosure
NEMAPro™ 4
Double Bay Free Standing
2 Front Doors
Material: Galvanized Steel or Aluminum
Standard Finish: Powder Coat ANSI 61 Gray
Dimensions [in.]: H:24–72, W:48–72, D:12–30
