NEMA 3 vs 3R vs 3RX Enclosures: Key Differences and How to Choose

NEMA 3, 3R, and 3RX enclosures all protect outdoor electrical equipment from rain, sleet, and ice formation. The differences come down to three factors: dust protection, corrosion resistance, and material construction. NEMA 3 offers full dust and weather sealing. NEMA 3R removes the dust-tight requirement for a lower-cost, rain-focused design. NEMA 3RX adds corrosion resistance to the 3R rating by using stainless steel with passivation treatment — making it the right choice for coastal, offshore, and chemical environments.

Understanding these distinctions helps design engineers select the enclosure that matches their environment without over-specifying or under-protecting critical equipment.

What Do the NEMA Suffixes Mean?

Before comparing the three ratings, it helps to understand NEMA's suffix system. NEMA 250 assigns letter suffixes to base enclosure types to indicate additional or modified protection:

• R (Rainproof) — Reduces the base rating's scope to rain, sleet, and ice protection. The "R" suffix removes the requirement for dust-tight construction, which lowers manufacturing complexity and cost.

• X (Corrosion Resistant) — Adds protection against corrosion from agents such as saltwater spray, chemical fumes, and industrial solvents. The "X" suffix typically requires stainless steel construction and specialized surface treatment.

So NEMA 3RX combines both suffixes: it is a rainproof (R) enclosure with additional corrosion resistance (X).

NEMA 3 Enclosures: Full Weather and Dust Protection

NEMA Type 3 enclosures are designed for indoor or outdoor use in locations where the equipment may be exposed to weather. They provide a complete seal against windblown dust, rain, sleet, and external ice formation. The enclosure must prevent ingress of solid particles and water under the conditions defined in NEMA 250.

NEMA 3 Protection Includes

• Access to hazardous parts by personnel contact

• Falling dirt and windblown dust, lint, fibers, and flyings

• Rain, sleet, and snow

• External ice formation on the enclosure

• Dripping and light splashing of water

Common NEMA 3 Applications

• Circuit breaker panels and junction boxes

• Generator skid electrical controls

• Construction site power distribution

• Tunnel and subway electrical systems

• Outdoor security and surveillance systems

• HVAC control equipment

NEMA 3 enclosures are typically constructed from painted steel or aluminum with gasketed doors and sealed conduit entries. Because the enclosure must be dust-tight, manufacturing tolerances are tighter, and gasketing is more extensive than in a 3R design.

NEMA 3R Enclosures: Rain Protection at Lower Cost

NEMA Type 3R enclosures provide rainproof protection for indoor or outdoor nonhazardous locations. The key distinction from NEMA 3 is that 3R enclosures are not required to be dust-tight. They protect against rain, sleet, and ice formation but do not seal against windblown dust, lint, or fibers.

This reduced scope makes NEMA 3R enclosures more cost-effective to manufacture and a practical choice when dust and airborne particulates are not a significant concern.

NEMA 3R Protection Includes

• Access to hazardous parts by personnel contact

• Rain, sleet, and snow (falling water and ice)

• External ice formation on the enclosure

NEMA 3R Does NOT Protect Against

• Windblown dust, lint, fibers, and flyings

• Settling airborne dust

• Hosedown or directed water spray

Common NEMA 3R Applications

• Residential and commercial safety switches

• Outdoor power distribution panels

• Lighting control cabinets

• Mobile power system equipment

• Utility metering enclosures

• Agricultural and farming equipment controls

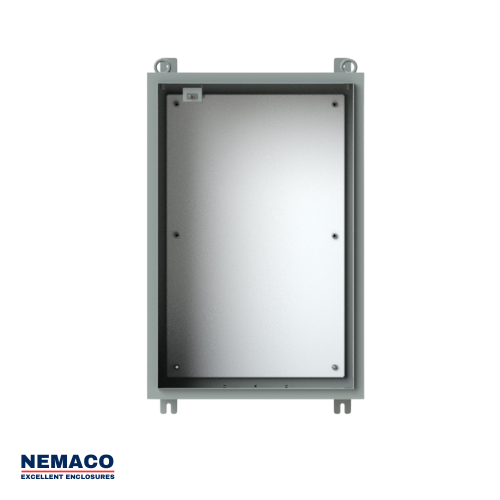

Nemaco manufactures the RainPro™ 3R line of NEMA 3R control cabinets in galvanized steel or aluminum with powder coat ANSI 61 Gray finish. Available in wall mount, floor mount, and free standing configurations, these cabinets carry an IP54 rating and include a standard sub-panel, rain-tight gasketed door, and optional filtered fans or louvered vents for thermal management.

NEMA 3RX Enclosures: Rain Protection Plus Corrosion Resistance

NEMA Type 3RX enclosures provide the same rainproof protection as NEMA 3R — guarding against rain, sleet, and ice — but add additional corrosion resistance. The "X" suffix indicates that the enclosure is engineered to withstand corrosive agents that would degrade standard steel or aluminum construction over time.

This makes NEMA 3RX the right choice when the enclosure will be exposed to saltwater spray, chemical vapors, high humidity, or other corrosive conditions — but dust-tight sealing is not required.

NEMA 3RX Protection Includes

• Everything NEMA 3R protects against (rain, sleet, ice formation, personnel contact)

• Additional corrosion resistance from salt spray, chemical fumes, and industrial solvents

When to Choose NEMA 3RX Over 3R

• Coastal and offshore installations — Salt-laden air corrodes painted steel within months. Stainless steel with passivation treatment maintains structural integrity for years.

• Chemical processing plants — Acidic or alkaline fumes attack carbon steel. Corrosion-resistant construction prevents enclosure degradation.

• Wastewater treatment facilities — High humidity and chemical exposure demand materials that resist pitting and crevice corrosion.

• Food and beverage processing — Stainless steel meets sanitation requirements and resists washdown chemicals.

• Marine and shipyard environments — Constant salt exposure requires corrosion-resistant materials and hardware.

Nemaco manufactures the RainPro™ 3RX line in 304 and 316L stainless steel with a #4 grain finish. Every RainPro 3RX cabinet receives ASTM A967 passivation — a chemical treatment that removes surface contaminants and free iron particles, creating a uniform chromium oxide layer that maximizes corrosion resistance. Like the 3R line, 3RX cabinets are available in wall mount, floor mount, and free standing configurations with IP54 protection.

NEMA 3 vs 3R vs 3RX: Side-by-Side Comparison

The table below summarizes the protection each rating provides according to NEMA 250 standards.

Material and Construction Differences

The NEMA rating defines the performance an enclosure must achieve — not how it is built. However, material selection directly determines whether an enclosure can meet a given rating's requirements, and it significantly affects cost and lifespan.

How to Choose Between NEMA 3, 3R, and 3RX

Selecting the right NEMA rating starts with understanding your installation environment. Ask these three questions:

1. Is Dust a Concern?

If your equipment will be exposed to windblown dust, sand, lint, or fibers — such as at a construction site, agricultural facility, or manufacturing floor — you need the dust-tight seal that NEMA 3 provides. NEMA 3R and 3RX do not protect against airborne particulates.

If the enclosure is in a relatively clean outdoor environment (rooftops, utility poles, building exteriors), dust-tight construction is unnecessary, and NEMA 3R or 3RX will suffice.

2. Will the Enclosure Face Corrosive Conditions?

Saltwater spray, chemical fumes, high-chloride atmospheres, and industrial solvents attack carbon steel and aluminum over time. If your installation is within 5 miles of a coastline, inside a chemical plant, or in any environment where corrosion is a known risk, choose NEMA 3RX with stainless steel construction.

For standard inland weather conditions without corrosive exposure, NEMA 3R in galvanized steel or aluminum is the cost-effective choice.

3. What Is Your Budget Priority?

NEMA 3R enclosures offer the lowest upfront cost for outdoor rain protection. NEMA 3 costs more due to tighter tolerances and full gasketing. NEMA 3RX has the highest material cost because of stainless steel construction and passivation treatment — but it delivers the lowest total cost of ownership in corrosive environments where a painted steel enclosure would need replacement within a few years.

NEMA 3R and 3RX vs Other Outdoor Ratings

If you need more protection than NEMA 3R or 3RX provides, consider these higher-rated alternatives:

• NEMA 4 / 4X — Adds hosedown, splashing water, and windblown dust protection. NEMA 4X adds corrosion resistance. Choose these when equipment faces direct water spray or washdown procedures. Nemaco's NEMAPro™ 4 and NEMAPro™ 4X lines are UL Listed and IP66 rated.

• NEMA 12 — Indoor-only rating that protects against dust, dripping water, and oil seepage. Suitable for manufacturing floors and machine tool enclosures.

• NEMA 6 / 6P — Adds temporary or prolonged submersion protection. Required for equipment in flood zones or underwater installations.

Nemaco RainPro™ 3R and 3RX Product Lines

Nemaco manufactures both NEMA 3R and 3RX control cabinets under the RainPro™ brand. All RainPro cabinets are custom-built to order in the United States and available in wall mount, floor mount, and free standing configurations.

Both lines include a standard sub-panel for mounting electrical and control components, rain-tight gasketed doors, and optional filtered fans or louvered vents for airflow management. The 3RX line adds ASTM A967 passivation and corrosion-resistant hardware throughout.

Need help selecting between NEMA 3R and 3RX for your project? Contact our engineering team or request a quote with your specifications.
