    SUBMERSIBLE ELECTRICAL NEMA 6P ENCLOSURES SERIES

    UL listed nema 6p enclosure

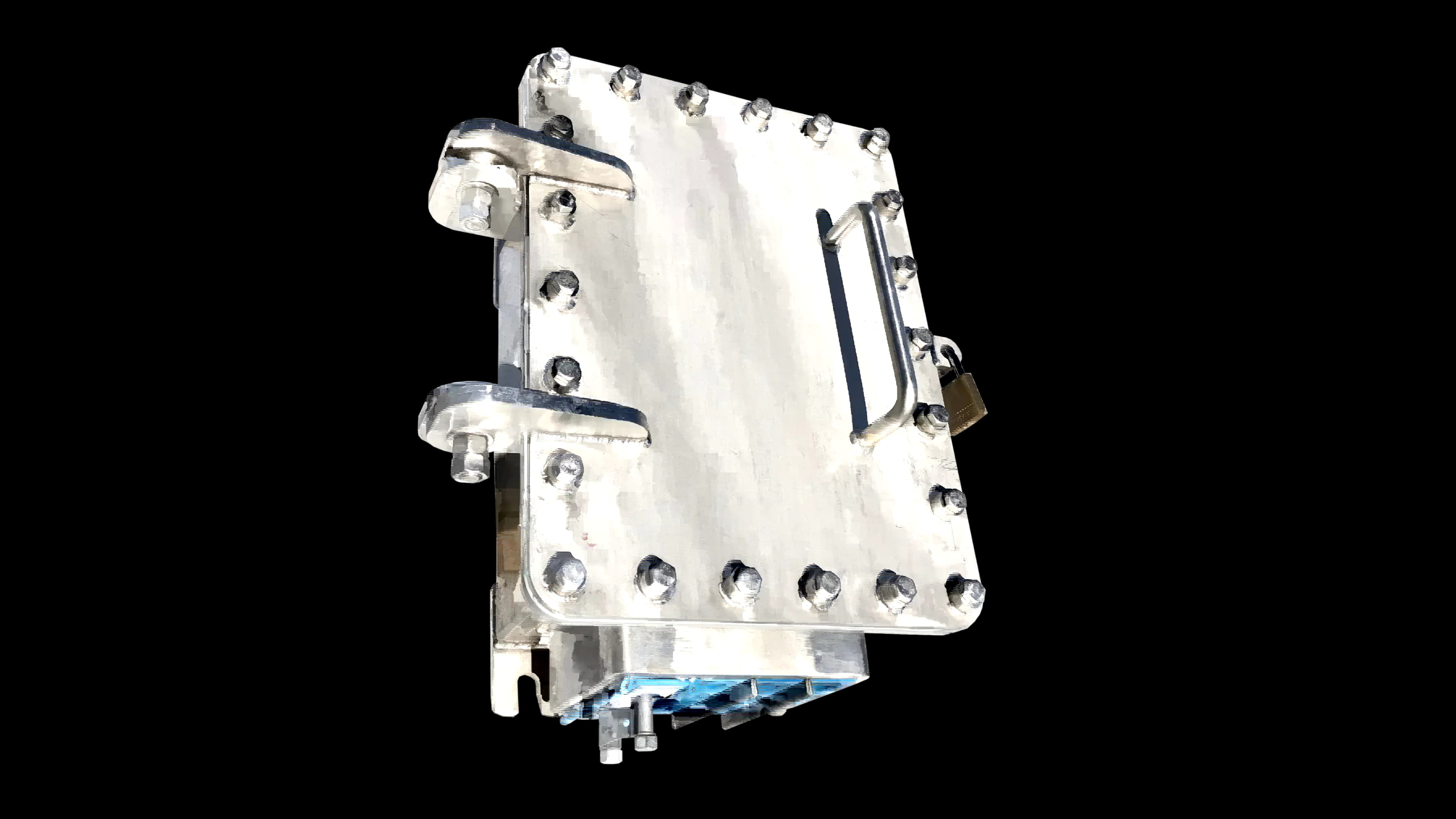

    SSL NEMA 6P submersible enclosure by NEMACO

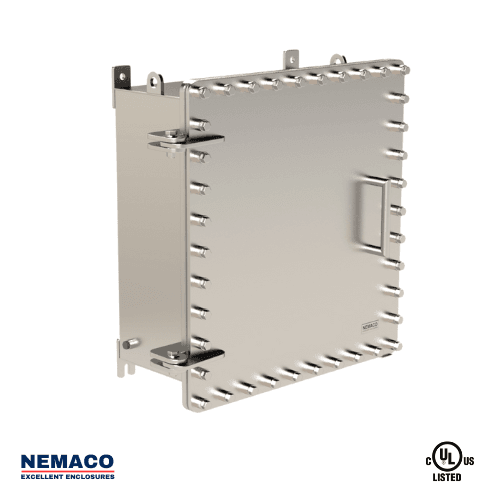

    Nemaco stainless steel NEMA 6P submersible enclosure

    NEMA 6P enclosures and boxes provide the best solution for waterproof and corrosion resistance applications. These type 6P is equivalent to IP68, which can be submerged under limited hight of water. Nemaco offers various materials for NEMA type 6P series enclosures and boxes such as stainless steel, powder coated aluminum alloys and FRP (fiberglass reinforced plastic) adherence NEMA 250 standard make them corrosion resistant and waterproof enclosures. These series provide protection for your electronic equipment inside from rain, water submersion(prolonged submersion), ice formation and also corrosion resistant. NEMA 6P Enclosures can be used for submersible application for both indoor and outdoor environments or any heavy water wash-down applications.

    Our NEMA Type 6P Enclosures are TESTED and APPROVED BY Underwriters Laboratories(UL)

    TYPE 6P DEFINITION PER NEMA 250 STANDARD

    Definition: Type 6P enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (hose directed water and the entry of water during prolonged submersion at a limited depth); that provides an additional level of protection against corrosion and that will be undamaged by the external formation of ice on the enclosure.

    Nemaco manufactures and tests NEMA type 6P adherence NEMA rating requirement standard.

    Protection comparison charts for NEMA types

    Why is Nemaco the right NEMA 250 type 6p to complete your applications?

    Our engineering team have ability to explain the level of protection and testing requirements of NEMA 6p enclosures, different between protection degree of each NEMA type and determine which one is suitable to your applications to save your time, money and make sure the enclosures will totally protect your eqiupments. Our customers enjoy counsels from our team, also our short lead times and consultative support.

    Nemaco offers different size of submersible enclosures, from as small as 4″ x 4″ x 4 ” for nema 6p junction boxes to largest we made 96″ x 48″ x  48″ for the very large waterproof boxes.

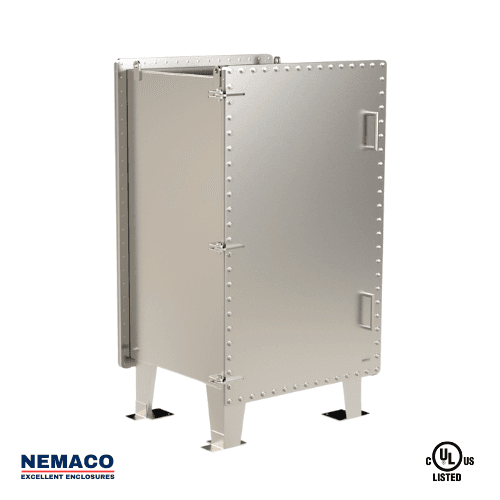

    Nemaco stainless steel NEMA 6P waterproof enclosure
    Nemaco Stainless steel NEMA 6P Waterproof Enclosure with type 3R door inside
    Nemaco waterproof NEMA 6P 3R enclosure opened

    NEMACO OFFERS SEVERAL TYPES OF SUBMERSIBLE NEMA 6 ELECTRICAL ENCLOSURES

    TYPE 1 #N6P060604-ECSS6 - NEMA 6P JUNCTION BOX (IP 67-68)

    ISOMETRIC VIEW OF NEMACO NEMA 6P IP68 WATERPROOF ENCLOSURE

    ISOMETRIC VIEW

    TOP VIEW

    RIGHT VIEW

    LEFT VIEW

    FRONT VIEW

    BOTTOM VIEW

    BACK VIEW

    TYPE 2 - #N6P161608-ECSS6 - NEMA 6P ELECTRICAL ENCLOSURE (IP 67-68)

    ISOMETRIC VIEW OF NEMACO NEMA 6P RATING SUBMERSIBLE ENCLOSURE

    ISOMETRIC VIEW

    TOP VIEW

    RIGHT VIEW

    LEFT VIEW

    FRONT VIEW

    BOTTOM VIEW

    BACK VIEW

    TYPE3 - #N6P242412-ECSS6 - NEMA 6P ELECTRICAL ENCLOSURE (IP 67-68)

    ISOMETRIC VIEW OF NEMA 6P STAINLESS STEEL ENCLOSURE

    ISOMETRIC VIEW

    TOP VIEW

    RIGHT VIEW

    LEFT VIEW

    FRONT VIEW

    BOTTOM VIEW

    BACK VIEW

    TYPE 4 - #N6P482616-AL - NEMA 6P ELECTRONIC ENCLOSURE (IP 67-68)

    ISOMETRIC VIEW OF POWDER COATED ALUMINUM NEMA 6P LARGE ENCLOSURE

    ISOMETRIC VIEW

    TOP VIEW

    RIGHT VIEW

    LEFT VIEW

    FRONT VIEW

    BOTTOM VIEW

    BACK VIEW

    DOWNLOAD DRAWING

    ModelHeightWidthDepthPDF File
    N6P040404444PDF
    N6P060604664PDF
    N6P060606666PDF
    N6P080804884PDF
    N6P080806886PDF
    N6P10100410104PDF
    N6P10100610106PDF
    N6P10100810108PDF
    N6P1208061286PDF
    N6P12120412124PDF
    N6P12120612126PDF
    N6P12120812128PDF
    N6P121210121210PDF
    N6P14140614146PDF
    N6P16160416164PDF
    N6P16160616166PDF
    N6P16160816168PDF
    N6P161610161610PDF
    N6P20160820168PDF
    N6P20200820208PDF
    N6P202010202010PDF
    N6P202012202012PDF
    N6P24240624246PDF
    N6P24240824248PDF
    N6P242410242410PDF
    N6P242412242412PDF
    N6P242414242414PDF
    N6P242416242416PDF
    N6P303010303010PDF
    N6P303012303012PDF
    N6P303014303014PDF
    N6P303016303016PDF
    N6P303018303018PDF
    N6P362412362412PDF
    N6P363012363012PDF
    N6P363612363612PDF
    N6P482412482412PDF
    N6P483612483612PDF
    N6P483616483616PDF
    N6P484812484812PDF
    N6P484824484824PDF

    File Request

    File name:

    MATERIALS & PROTECTIVE COATINGS FOR OUR WATERPROOF ENCLOSURES

    STAINLESS STEEL

    Typically, our type 6P enclosures are fabricated from stainless steel that provides corrosion resistance and material strength. It is better to use premium grades of stainless steel (304, 316 and 316L) grades of stainless steel for submersible enclosures. Premium grades of stainless steel contain more chrome and nickel elements for corrosion resistance. Generally, more chrome and nickel content added to stainless steel alloys, therefore, the stainless alloys have more corrosion resistance. Since the premium grades of stainless, reduce corrosion and surface oxidation, therefore it is uncommon for powder coat to be applied to stainless steel. Call Nemaco, NEMA enclosures manufacturer in the U.S.A., for more information about (304, 316, 316L grades) stainless steel NEMA / Type 6P enclosures and stainless steel passivation.

    Learn more about NEMACO™ Stainless Steel NEMA Enclosures >>

    Aluminum alloys

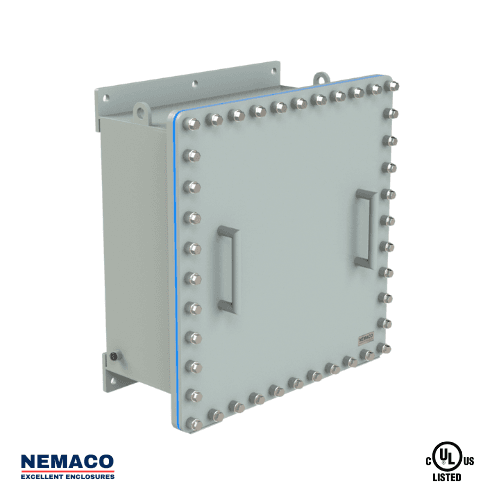

    Aluminum alloys (including 5052, 6061 and cast material grades) can be used for some type 6P enclosures applications.  Many aluminum alloys have fairly good corrosion resistance. To improve corrosion resistance for aluminum alloy enclosures, the enclosures must have a protective coating applied. Commonly, powder coating and marine coatings create a protective surface barrier to inhibit corrosion. Call us for more information about aluminum waterproof NEMA / Type 6P enclosures with powder coating and marine coatings.

    Learn more about (FRP/GRP)NEMACO™ Fiberglass NEMA Enclosures >>

    fiberglass reinforce plastics (frp / grp)

    For some applications, fiberglass reinforced plastics (FRP / GRP) can be considered and used for Type 6P since FRP glass and resin materials do not rust or corrode. But the enclosures should be designed with heavier (thick) walls for most applications. Ask us for more information about our Waterproof FRP (fiberglass reinforced plastic) steel NEMA / Type 6P enclosures.

    BRASS, COPPER & BRONZE ALLOYS

    Other materials (for example, brass, copper, bronze alloys) might be used for Type 6P applications but it is not common for most industrial applications due to cost and materials not generally available. Brass, copper and bronze alloys can be using fittings and adapters.

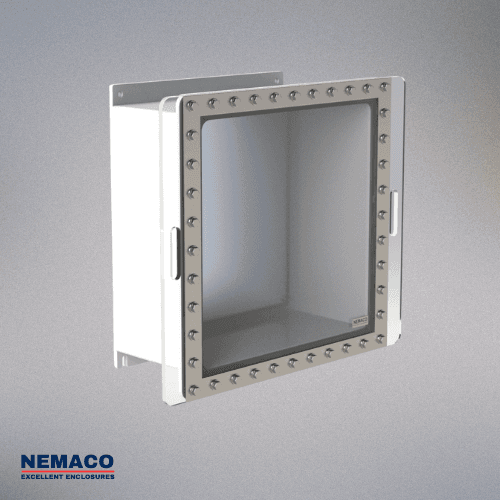

    NEMACO FIBERGLASS NEMA 6P ENCLOSURE

    NEMACO FIBERGLASS NEMA 6P ENCLOSURE

    TYPE 6P ENCLOSURES SUMMARY

    What is NEMA 6P? How much protection does it provide?

    Basic Type 6p Definition Overview

    • Provides protection in a prolonged submersion for limited
    • Protection from rain, water submersion, ice information
    • Requires water corrosion resistant materials

    Materials and Coatings Overview

    • Stainless Steel (Grades 304/316, 316L) – Strong, Durable, Corrosion Resistant
    • Powder Coated Aluminum (5052, 6061) – Low Weight  
    • FRP (fiberglass reinforced plastic) – Good Corrosion Resistance

    Nemaco manufactures total waterproof NEMA type 6P Enclosures in stainless steel, powder coated aluminum alloys and FRP (fiberglass reinforced plastic).

    Contact us for FREE suggestions about materials selection for your application.
